Metso Barmac and Sandvik VSI impact crusher parts

Wear parts and rotating assemblies for Metso Barmac B6150 / B7150 / B9100 and Sandvik CV series (CV215–CV229). Manufactured to original specifications.

Rotating assembly

Shaft assembly

42CrMo forged and heat-treated. Keyway and bearing seats ground to OEM tolerances. Complete with bearings, seals, and locknuts.

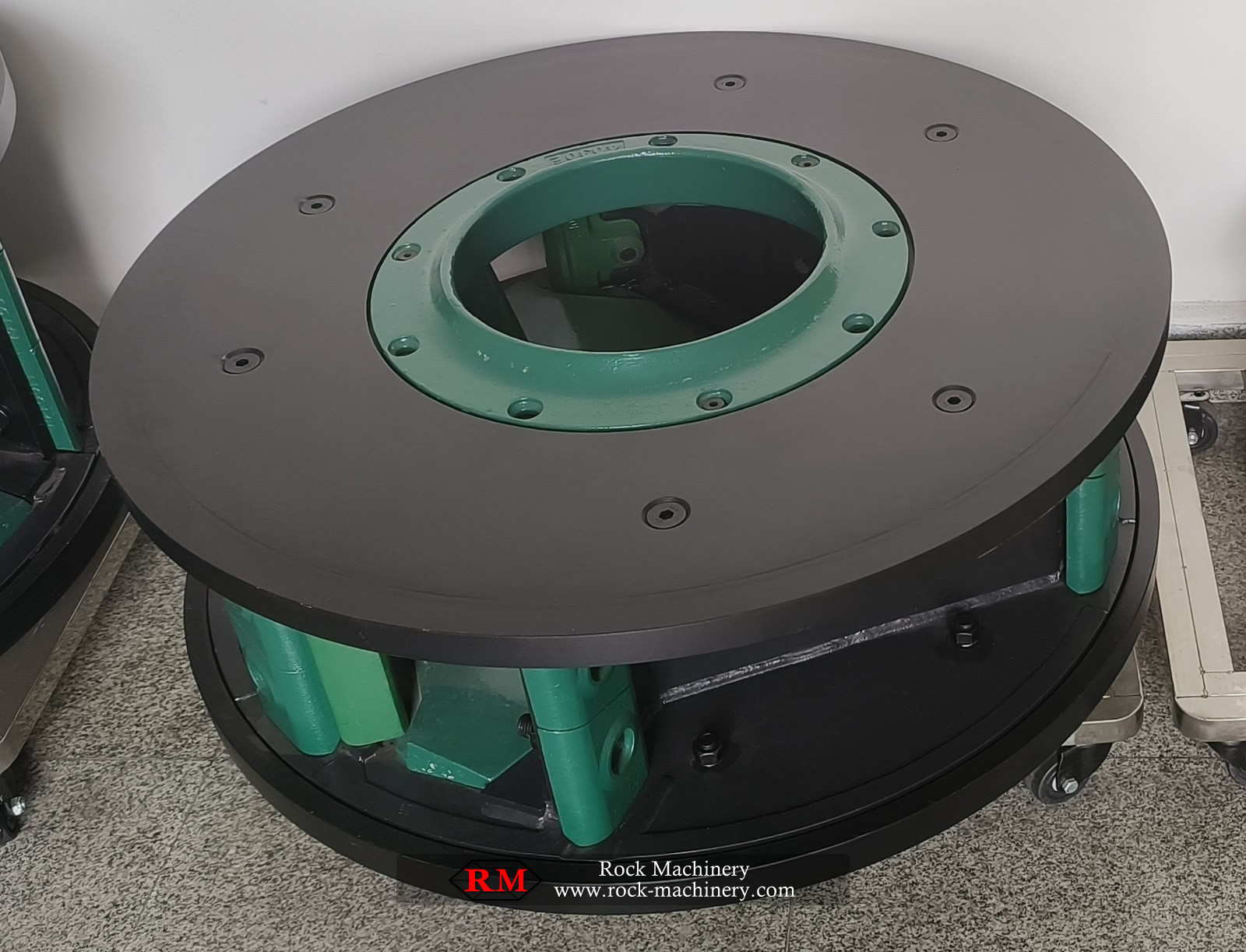

Basic rotor assembly

Ni-hard wear ring rotor body with replaceable wear plates. Balanced at 1,200–1,800 rpm depending on machine size.

Bare rotor

Rotor body without wear components — for rebuilds where you keep your existing tip sets and wear plates.

Wear components

Rotor tip set / backup tip set / hanger tip set

Tungsten carbide tips brazed onto steel carriers. 3-tip and 4-tip rotor configurations. Tip sets include backup blocks for use after the carbide face wears through.

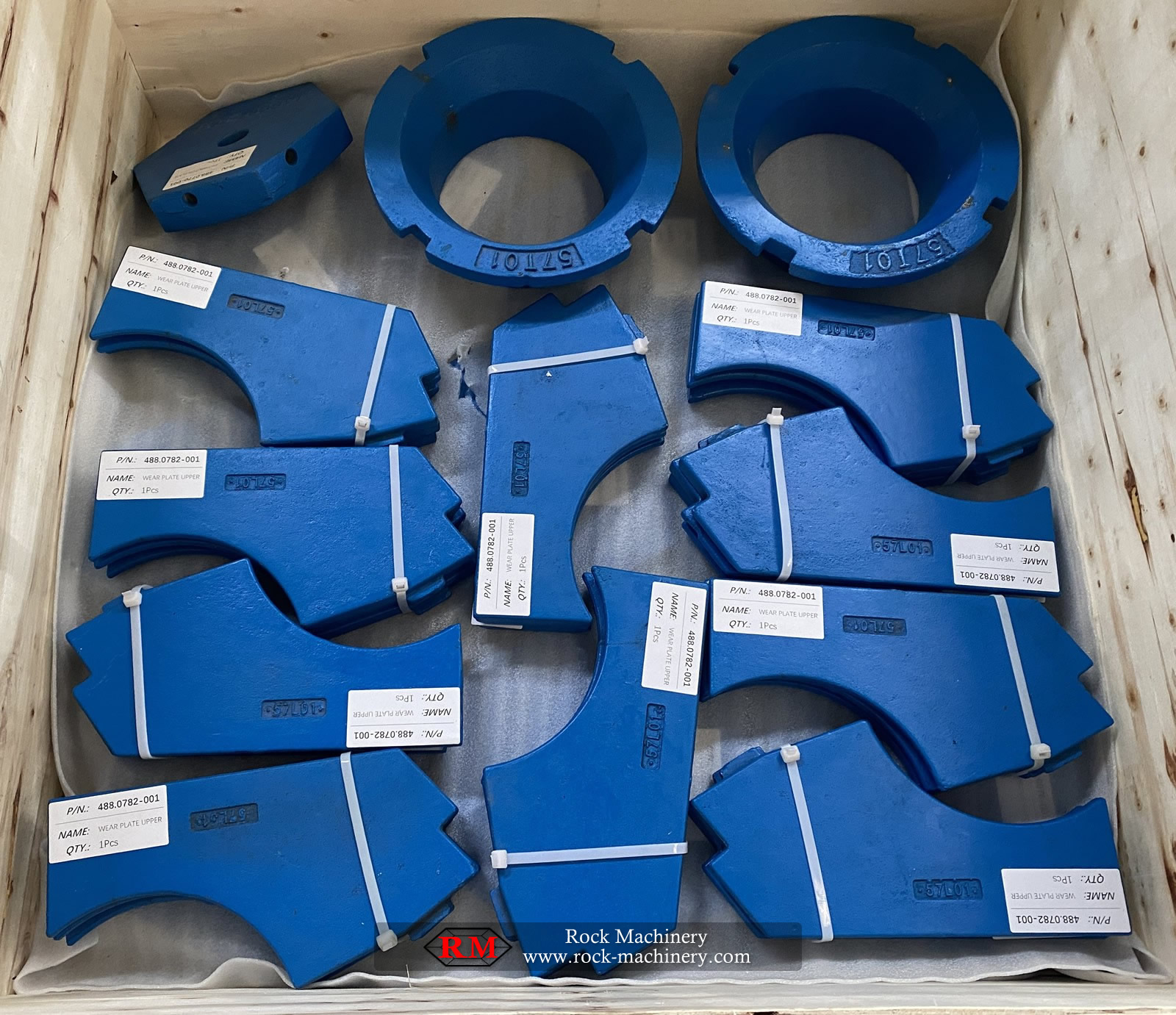

Wear plate / top plate / bottom tip wear plate set

Ni-hard or chrome white iron. Bolt-in design — no welding required. Upper and lower sets sold separately or as a complete kit.

Feed plate / distributer

Directs material into the rotor eye. Ni-hard with hardened insert ring. Distributer plate sits above the rotor for even material flow across the chamber.

Other components

Spider frame / hub / wear rubber

Spider frame supports the rotor — cast and machined. Hub connects rotor to main shaft spline. Wear rubber protects internal casing from rebounding material.

Relay

24V DC control relays. Direct replacement for original electrical cabinet components.

Tell us your machine model, serial number, and whether you need a full rotor rebuild kit or individual wear items.
